Merging

Merging is the unification of two or more commit histories of branches. It can only take place within the same repository: branches (whether originating from this repository or some other repository) must be present beforehand before a merge can take place.

To many, a merge is technically completed when a new commit is persisted. The resultant commit will have as many parent commits as there are branches.

A merge always involves merging a source branch into the current, target branch.

git merge sourceBranchName

In general, all developers are advised to perform merges with a clean working directory and index (i.e. where are previous updates have been staged and committed).

Viewing merges

One can use gitk (there are other viewers) to view commit graphs following a merge, or, in the case of constrained environments (e.g. a command line interface) the command:

git log --graph --decorate --pretty=oneline --abbrev-commit

This will show the commit graph, with the current branch as the primary branch from which all other branches are related to. The current branch is normally set on the left, with the latest commits at the top of the output.

Git log commit graph

Merge conflicts

Conflicts occur when the updates on the target and source branches are not identical.

In such cases, Git will not complete the merge or commit anything. Instead it will leave the index and working directory in a dirty state, and mark the conflict within a file (in the working directory) with three-way/merge/conflict resolution markers.

<<<<<<<<<HEAD
=============
>>>>>>>>>sourceBranch

The developer must then modify the conflicting file, remove the markers and then request a git commit.

Finding conflicted files

List conflicted files, as referenced to by the index, with:

git ls-files -u

Inspecting conflicts

Once located, open the file to find the merge markers, before deciding what should be applied.

The following represents a example as a result of the merge of two branches (recall, Git can merge more than two if needed):

<<<<<<<<<HEAD
[what is in the target (current) branch]
=============
[what is in the source branch]
>>>>>>>>>sourceBranch

When updated and the merge markers removed, stage the update, check for other merge markers with git diff --check, update and stage others where found, before committing the changes.

Using Git diff

One can print the differences delineated by the merge markers with git diff. Assuming again the merge of two branches, this produces output of the form (not all output is shown for brevity):

++ <<<<<<HEAD
 + somethingNotInSource
++ ======
+  somethingNotInTarget
++ >>>>>> sourceBranch

The signs indicate what Git was trying to do:

  • + line addition
  • - line removal
  • [blank] - no change

The first two characters of each line are two columns, the left-most depicting what Git was trying to do with the current (target) branch, and the next column depicting what Git was trying to do on the other (source) branch.

So the above example shows that Git was trying to:

  • Add merge markers to both the source and target branch (denoted by a + in both columns)
  • Add a line with content “somethingNotInSource” to the source branch
  • And, add a line with content “somethingNotInTarget” to the target branch

In addition, this approach shows the changes attempted against both (all) branches (since there are two columns on the left).

To view a diff from the perspective of one branch only (useful if one plans to ignore the other branch) then one can use one of two git commands.

git diff HEAD
git diff --ours

This will show one column on the left, as “half” the output of the above, as follows:

+ <<<<<<HEAD
  somethingNotInSource
+ ======
+  somethingNotInTarget
+ >>>>>> sourceBranch

Conversely, one can ignore the current branch and favour the other branch:

git diff MERGE_HEAD
git diff --theirs

+ <<<<<<HEAD
+ somethingNotInSource
+ ======
  somethingNotInTarget
+ >>>>>> sourceBranch

The MERGE_HEAD notation will become clear shortly. Note the introduction of the [blank] operation, showing nothing would change if applied.

Finally, developers should note that by updating the conflicting file and removing the markers, Git will assume that this conflict is resolved and not list it again if the command git diff was re-run. This is helpful particularly if there are lots of conflicts to resolve and developers want to focus on what’s conflicted only.

Conflict internals

On conflict, Git records the SHA1 of the source commit in the file .git/MERGE_HEAD.

After this and a commit was requested, Git then records the default merge message in the file .git/MERGE_MSG.

Finally, Git tracks three files: (1) the conflicting file (the file that contained the merge markers: this file is referred to as a merge base) and the two original files pre-merge, (2) target and (3) saving the state in the index. The actual merge base is stored in the working directory.

The numbers stated are actually stage numbers:

  1. Any non-conflicted file
  2. Merge base (Git saves this new project file to the working directory on behalf of the user)
  3. Target file
  4. Source file

At this point, Git has what it needs to rollback a merge (discussed later).

Picking a side

It is possible to apply all changes from one side (source or target) for a given file with either ours or theirs:

git checkout --ours filename

Final checks and the diff of a merge

One can run git ls-files -s (instead of the parameter u) to list all tracked files, conflicted or not.

All files must be assigned a stage number 0 to indicate that it is not conflicted, and therefore that all changes can be committed.

The commit following a merge is denoted by a Merge field when running git log. A basic form of output, again assuming the merging of two branches, is given below:

commit [hashValue] (branchNameList)
Merge: parent1SHA parent2SHA1
Author: ...
Date: ...

  mergeComment

Git, if applicable, will also introduce a diff of the merge, which can be revealed with git log, focusing on the differences between files only, along with the action taken. The two columns again represent, from the left, what was done to the current (target) branch and what was done to the source branch:

diff --cc fileName
...
...
fileLineBefore
-  lineInTarget
 - lineInSource
++ lineForBoth
fileLineAfter

In the above case, both target and source files had a line removed, and, both had a line added (so effectively the line was replaced in this case).

Restarting or aborting a merge

To restart an ongoing (e.g. when the developer is still working through conflicts) merge, use git checkout -m.

To abort a merge (e.g. shortly before committing changes), use: git merge --abort.

To discard a committed merge, use git reset --hard ORIG_HEAD.

Git would have saved the original HEAD reference for cases like the above. Note that a hard reset will return the project state to the last clean index and working directory state. Any changes not committed before the merge took place would be lost.

Merge strategies

Merge strategies come to the fore when merging more than two branches, though can still be applied in simpler two-branch merges.

Degenerate merges

Some merges (which Git does not return as an error) are not strictly merges (to some) since they do not introduce a new merge commit.

Two simple examples of such degenerate merges are shown next.

Already up to date

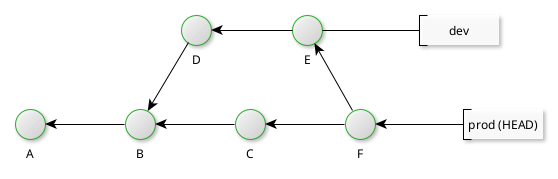

Already up to date merge

In this case, the prod branch is already up to date (the HEAD is ahead or a descendent) with the commits from the dev branch. Any attempt to merge dev into prod will result in an Already up to date (merge) response.

Fast forwarding

This results from the fast-forwarding of a branch tip, where the HEAD is behind (i.e. is an ancestor to the named commit). Take for example the following where the HEAD of the local dev branch is an ancestor of the tip of the origin branch.

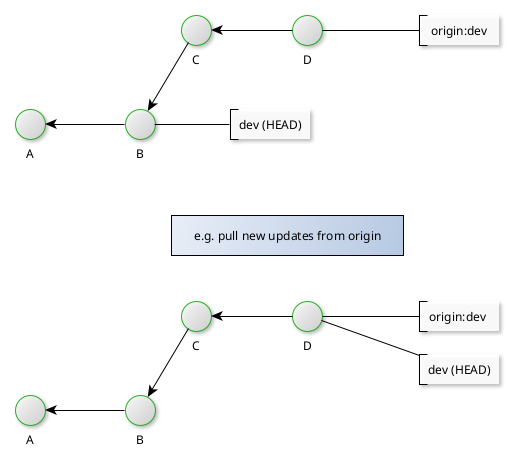

Fast forward merge

Common examples of such merges occur when pulling (or indeed fetching) from a remote repository (assuming the developer hasn’t made local changes).

If the developer hasn’t made any local changes following commit B; hence, pulling from the (more up to date) remote repository need not involve saving a new commit locally (hence degenerate). Git only needs to move the HEAD to the tip of the branch after pulling from the remote repository.

Fast foward merges are the inverse of Already up to date merges.
